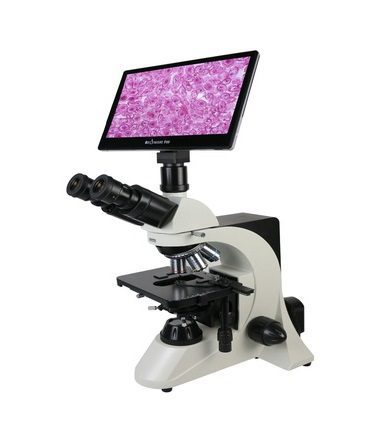

XSZ- Digital video Infinity biological trinocular lab microscope
Product Description
XSZ-700 Series Infinity Biological Microscope
★ CCIS Infinity Chromatic Aberration Revise System, High resolution image.
★ Improve in optical capability, wide-field, better image quality.
★ Main body of “Y” style design, stable & reliable whole structure.
★ Humanized configuration design, lower draw operation, makes the user more comfortable.
★ Knocked-down type and double layers mechanical stage
★ Abundant accessories structure to ensure the use of different users
Technical Specification :
|
Specification
|
|||
|
Model
|
XSZ-702
|
XSZ-703
|
|
|
Optical System
|
CCIS Infinite Aberration Correction Optical System, High-resolution Image
|
||
|
Viewing Body
|
30°Incline Compensation Free Binocular Body, Interpupillary Adjustable Distance: 50～75mm
|
●
|
|
|
30°Incline Compensation Free Trinocular Body, Interpupillary Adjustable Distance: 50～75mm
|
●
|
||
|
Eyepiece
|
WF10X(Viewing Field Diameter: ø25mm)
|
||
|
Infinity Plan Achromatic Objectives
|
4×∞/NA 0.1，10×∞/NA 0.25，20×∞/NA 0.50，40×(s) ∞/NA 0.65，100×(s, oil) ∞/NA.1.25
|
||
|
Mechanical Stage
|
Knocked-down type and double-plate mechanical stage，Size:185mm×145mm，Moving Range:75(X)mm×50(Y)mm，Precision: 0.1mm
|
||
|
Nosepiece
|
Inflexed Nosepiece of Quintuple Holes
|
||
|
Focusing Unit
|
Coaxial coarse/fine focusing system，focusing range:25mm，Division of Fine
Focus Adjustment:0.002mm
|
||
|
Condenser
|
Swing type Condenser:N.A.1.2/0.22
|
||
|
Illumination
|
Transmitted Kohler Illumination, 6V 30W Halogen Lamp, with Adjustable Brightness，Free Voltage 100V～240V，Blue Filter(optional LED lamp, halogen lamp double light source)
|
||
Optional Accessories
|
Phase contrast Device
|
Rotary phase contrast device （10X、40X、100X Infinity phase contrast Objectives）Alignment telescope
|
||
|
DarkField Device
|
Dark Field Condenser（Dry Dark Field Condenser，N.A.0.9; Immersion Dark Field Condenser, N.A.1.25.）
|
||
|
Polarizing device
|
Analyzer.polarizer
|
||
|
Digital camera device
|
Can be equipped with 5 million, 15 million pixel digital camera device and a variety of high-definition HDMI professional camera device
|
||
|
Digital photographic device
|
Can be equipped with CANON , NIKON and other digital SLR cameras, but also optional SZ-3 universal Camera Adapter
|
||
Feature
1. Direct Output to HDMI Screen, No Need the PC!
2. Mouse Control Camera, Connect with Wifi Mouse via USB Interface
Feature
1. Complete Application Functions, Not Only Camera, Also Tablet PC!
2. 5 Megapixel Color Camera
3. 9.7inch 1024×768 IPS Color LCD Touchscreen, Can be Operated by USB Keyboard and Mouse
4. Build-in Android 4.2 Operating System, RK3066; Dual-core 1.5GHz CPU
5. Support External SD Memory Card
6. Multiple Interfaces, USB, SD Memory Card, HDMI Output can Connect with Monitor or Projector Screen
7. WI-FI and Bluetooth Ready
8. Build-in Microscopy Software for Capture/Record Images and Measurement
9. Professional Particle Analysis Software
10. Measure Data Can be Export to Excel File
11. Standard C-mount Interface.
|
Parameter
|
||
|
Hardware
|
CPU
|
RK3066 Dual-core 1.5Hz
|
|
Display
|
9.7inch 1024*768 IPS LCD
|
|
|
Storage
|
RAM 1GB DDR3
|
|
|
ROM 2GB
|
||
|
Support External SD Memory Card, Maximum Capacity Up to 32GB
|
||
|
Camera
|
1/2.5″ (4:3), 5Mega Pixel Color CMOS Sensor
|
|
|
15fps@1024*768
|
||
|
Housing
|
Abs+ PC Plastic Housing+ Aluminium Back Case, Metal Stand
|
|
|
Network
|
WI-FI
|
|
|
Bluetooth
|
||
|
I/O
|
USB/Mini-USB (OTG), Support USB Keyboard and Mouse
|
|
|
HDMI Output
|
||
|
SD Memory Card Slot
|
||
|
DC5V Power
|
||
|
On/Off Button
|
||
|
Mechanical
|
LCD Screen 360��@Horizontal/ 90��@Vertical
|
|
|
Software
|
Operating System
|
Android 4.2.2
|
|
Banding Software
|
Build-in Microscopy Software (Measuring and Particle Analysis)
|
|
|
Accessories
|
Standard
|
Power Adapter
|
|
Optional
|
0.5x Nose Piece with ��23mm, ��30mm and ��30.5mm Adapter Rings for Different Diameter Eyepiece Holders
|
|
|
Build-in Camera
|
|
|
Optical Format
|
1/2.5-inch (4:3)
|
|
Active Image Size
|
5.70mm(H) *4.28mm(V)
|
|
7.13mm (Diagonal)
|
|
|
Active Pixels
|
2592H*1944
|
|
Pixel Size
|
2.2um *2.2um
|
|
Dynamic Range
|
66.5dB
|
|
SNR
|
40.5dB
|
|
A/D Converter
|
12-bit, On-chip
|
|
Sensitivity
|
0.53V/lux-sec (550nm)
|
|
Resolution&Frame Frequency
|
1280*720@15fps
|
|
640*480@30fps
|
|
|
Shutter
|
Electronic Rolling Shutter (ERS)
|
|
White Balance
|
Auto/Manual
|
|
Brightness Control
|
Auto/Manual
|
|
Color
|
R/G/B Adjustable
|
|
Freeze
|
Support
|
|
OSD
|
UI design, Mouse Control
|
|
Edge Enhancement
|
Support
|
|
Cross Cursor
|
Support, Multi-color, Size Adjustable
|
|
Transverse And Vertical Line
|
4pcs of Transverse Line/Vertical Line, Movable and Size Adjustable
|
|
Image Contrast
|
Support
|
|
Wide Dynamic
|
Support
|
|
Measure
|
Support
|
|
Digital Denoiser
|
Support
|
Application
1. Biological Teaching Digital Imaging 2. Medical Digital Imaging Microscopy
3. Field Operation Digital Microscopic Imaging 4. Family Natural Science Education
5. Surgical Microscopic Imaging 6. Navigation for Processed Imaging
7. Industrial Optical HD Digital Imaging 8. Astronomical Observation
Build-in Microscopy Software
After the device is turn on, touch the ��YWCamera��Icon to open the camera application
Real-Time Measurement Software.
1��Preview Image �C show live video of the camera.
2��Tool Panel �C Control panels, capture, adjust parameter, measurement, etc.
3��Thumbnail Panel �C Show captured images and videos, touch it to browse the files.
4��System Tool �C toggle thumbnail, rotate, full screen, configure.
II. Particle Analysis Software
Touch the ��YWImage�� icon to open the particle analysis application.
1��Preview Image-show live video of the camera.
2��Tool Panel-Control panels, capture, adjust parameter, measurement, etc.
3��Thumbnail Panel-Show captured images and videos, touch it to browse the files.
4��System Tool-toggle thumbnail, rotate, full screen, configure.
