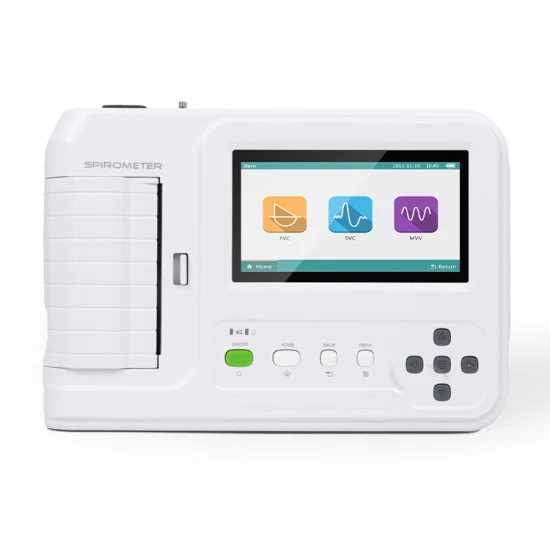

Spirometer Sp100

Spirometer SP100

SPECIFICATIONS:

Measurement of forced vital capacity (FVC), Vital Capacity (VC/SVCI) maximum voluntary ventilation (MVV) and relevant functions, more than 30 parameters can be measured and displayed, for several types of measurements the optimal result will be displayed, the condition of subject can be shown by the ratio of the measured value and the predicted value.

• Measurement parameters: Forced Vital Capapcity (FVC), FVC, FEV1, PEF, FEV1%, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6,ELA, FET, EVOL.FIVC, FIV1, FIV1,FIVC,PIF,MVV
• Vital Capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC,TV, VE, RR, tl, tE, TV/tl, tl/ttot
  Maximum Ventilatory Volume (MVV):MVV
• Real – time display respiration waveform: Flow-Volume loop and Volume-Time curve chart;
• 7″ color LCD touch screen, buttons can be operated along with touch screen;
• Incentive animation operation guide, easy for use between children and the old;
• Built-in thermal printer, reports can be printed directly;
• BTPS automatic correction function, compensate for the impact of environmental differences;
• Test Time and environment temperature display;
• Calibration function, ensure measurement accuracy;
• Multiple predicted value can be selected, suitable for different population
• Storage of more than 10,000 groups of data;
• Lung age estimation function;
• Built-in lithium battery, supports both AC and DC

PERFORMANCE:
Volume range : +/- 10 L
Volume accuracy: +/-3% or +/-0.05 L (whichever is greater)
Flow Range: +/- 16L/s
Flow accuracy: +/-5% or +/- 0.2L/s (whichever is greater)
Power supply: 100V-240V – 50/60Hz
Input Power: 60 VA
Safety type: Class I equipment, type BF applied part
LCD screen: 7″ colour TFT touch screen
Printing paper: 11.2 cm(W) x 20cm(L) high-speed thermal paper.

ACCESSORIES:
Spirometer 1pc
Mouthpiece 4pcs
Nose clip 1pc
Recording paper 1pc
Power cord 1pc
User Manual 1pc
