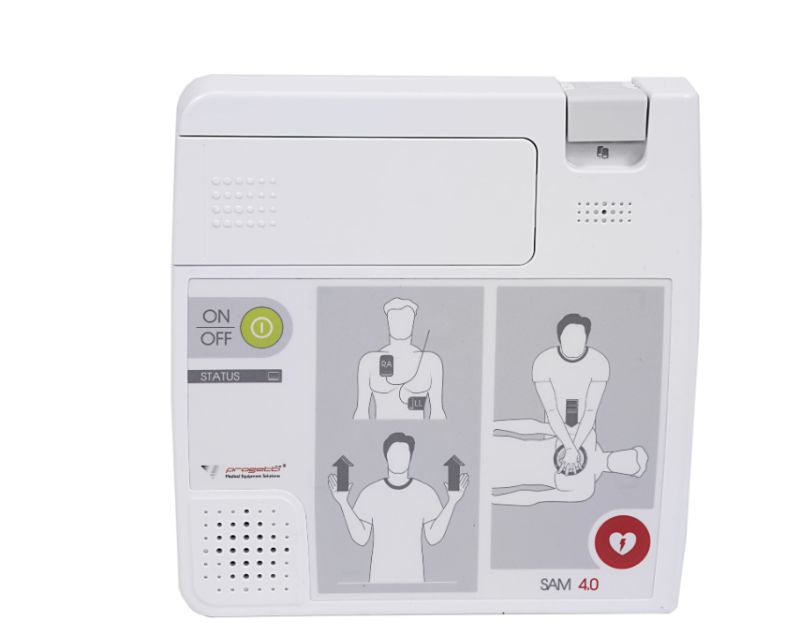

Name: Progetti AED Rescue SAM 4.0
SKU: 58983
Availability: InStock

4-CORE ANALYSIS SYSTEM:

A sophisticated system for continuous ECG signal analysis even while the defibrillator is charging. Thanks to its 4 advanced management algorithms, it can autonomously determine when the shock should be administered, ensuring it is always used correctly and safely.

PUREVOICE SYSTEM:

A cutting-edge audio system that delivers clear and perfectly intelligible voice messages, even in very noisy environments.

UNIVERSAL PADS:

Thanks to the universal pads, the user can easily select the patient type adult or pediatric directly with the dedicated button on the AED front panel with a simple gesture, avoiding the need to replace the pads. Pre-connected and integrated into the rear compartment, the pads ensure maximum speed of action. Additionally, the system continuously monitors the pad connection to guarantee correct and safe operation.

PRE-CHARGE: MAXIMUM READINESS:

The device features an advanced pre-charge function that allows the AED to prepare in advance for a potential shock, significantly reducing charging time. This proactive approach ensures a faster response when every second counts, increasing the chances of a successful intervention.

ALWAYS READY, ALWAYS UPDATEABLE, ALWAYS EASIER:

A USB port allows quick and convenient management of the defibrillator directly from a PC. Users can independently event data that can be viewed, printed, or archived using our free sof ware, designed to offer intuitive access and full control over every intervention record. Similarly, the AED can be updated remotely with the latest available software version.

TAKEN TO LIMITS TO EXCEED THEM ALL:

RESCUE SAM 4.0 passed rigorous endurance testing as per the latest safety standards. It achieved one of the highest protection indexes against solid particles and liquids (IP55) and passed the 1.5-m drop test

DISCHARGE ENERGY PROTOCOL:

The standard configuration is fixed at 200 J for adult and 50 J for pediatric use. Optionally, Rescue Sam 4.0 can be set with an incremental shock protocol, so the AED delivers a sequence of shocks with increasing defibrillation energy. In addition to default protocols, the defibrillation energy values and the number of shocks can be varied based on the customer’s requests.

MULTILINGUAL, FOR MAXIMUM ACCESSIBILITY:

Rescue Sam 4.0 is bilingual but optionally supports three or more languages making it accessible to everyone, everywhere, even in multicultural environments such as airports, hotels, tourist spots, and more.

DEFIBRILLATOR

Operating mode: semi-automated or fully-automated versions
Intended use: for adult and paediatric patients with universal pads
Waveform: Biphasic Truncated Exponential (BTE) compensated by patient’s impedance
Discharge protocol: a) Fixed: 200 J nominal (adult) or 50 J nominal (paediatric)
(b) Incremental (optional, sequence of 2/3 shocks):
150 J up to max 200 J (adult)
50 J up to max 90 J (paediatric)
Energy charging time from shock advised: ≤ 4 s for 200 J with a fully charged battery ≤ 3 s for 50 J with a fully charged battery
Pacemaker Detection: Detection and removal of artefacts created by pacemaker

ECG

CMRR: 120 dB
Input impedance: 500 kΩ
Filters: improvement of the signal removing power interference and baseline oscillation HR range: 30-300 bpm
Sampling rate: 1200 samples per second

PHYSICAL & ENVIRONMENTAL CONDITIONS

Size: 257 x 258 x 80 mm
Weight: 2.2 kg including battery pack and pads
Protection class: IP55 BATTERY Characteristics: 12 VDC , 4.2 Ah, non rechargeable LiMnO2 battery with circuit protection and internal memory
Capacity: up to 10 hours continuous operation or up to 250 shocks at maximum energy 200 J

SELF-TEST

Continuous automatic battery and pads connection tests; daily and monthly tests; battery insertion test (manual test)

DATA RECORDING AND TRANSFER

ECG and events: up to 150 hours of recording including ECG signal, rescue data (eg. number of shocks delivered), and environmental noise (optional)
Internal memory: 8 Gb

CONNECTIVITY
