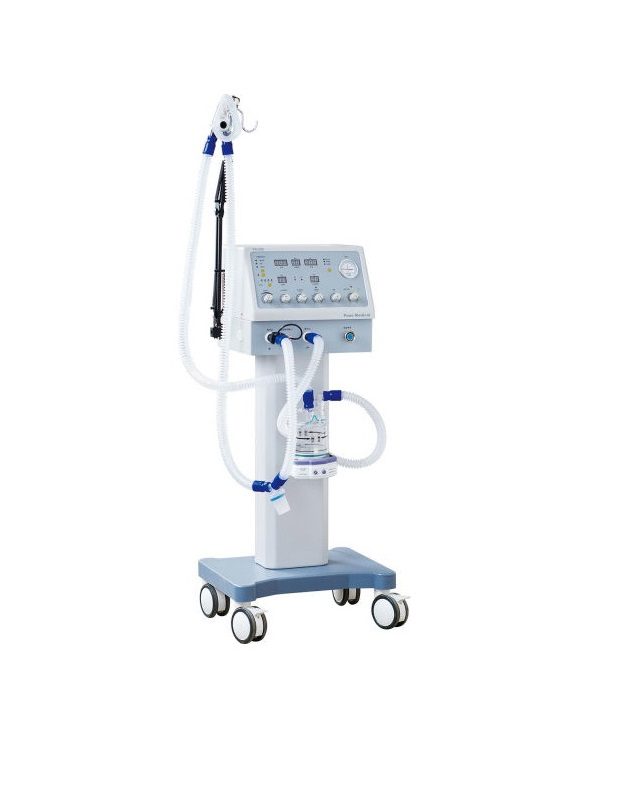

PA-500 Economical Medical Trolley ventilator machine
Features
The PA-500 ventilator is an electrically controlled pneumatic ventilator integrating such functions as time, volume cycling, pressure limit, etc. It is mainly intended for providing ventilation support to a critically ill patient during the life-threatening phase and ensuring the going-through of the dangerous period by the patient and smooth treatment of primary diseases for recovery. Also it provides an alternation in case of irreversible lesions in respiratory muscles or irreversible damage to the upper airway to maintain the respiratory function of the patient, and also provides ventilation assistance for the patient during the recovery from a disease or operation.
Specifications
| Model | PA-500 |
| Display | LED Display |
| Ventilation Mode | A/C, SIPPV, IPPV, SIMV, IMV,MANUAL |
| Minute Volume | Greater than or equal to 18L |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml, Display range: 0-2000ml |
| Respiratory Rate | 6-60bpm |
| Inspiratory/expiratory (I:E) ratio | 1:1.5-1:3. |
| SIMV Rate | 1-12bpm |
| Inspiratory Pressure Trigger | -4-10cmH2O |
| Trigger Sensitivity (flow) | 1-10L/m |
| Inspiratory Plateau | Adjustable from 0-50% of inspiratory time |
| Gas Supply Requirement | 280~600 kPa medical grade oxygen and compressed air |
| Pressure Limit | 1.0kPa~6.0kPa |
| Maximum Safe Operating Pressure | ≤6.0kPa |
