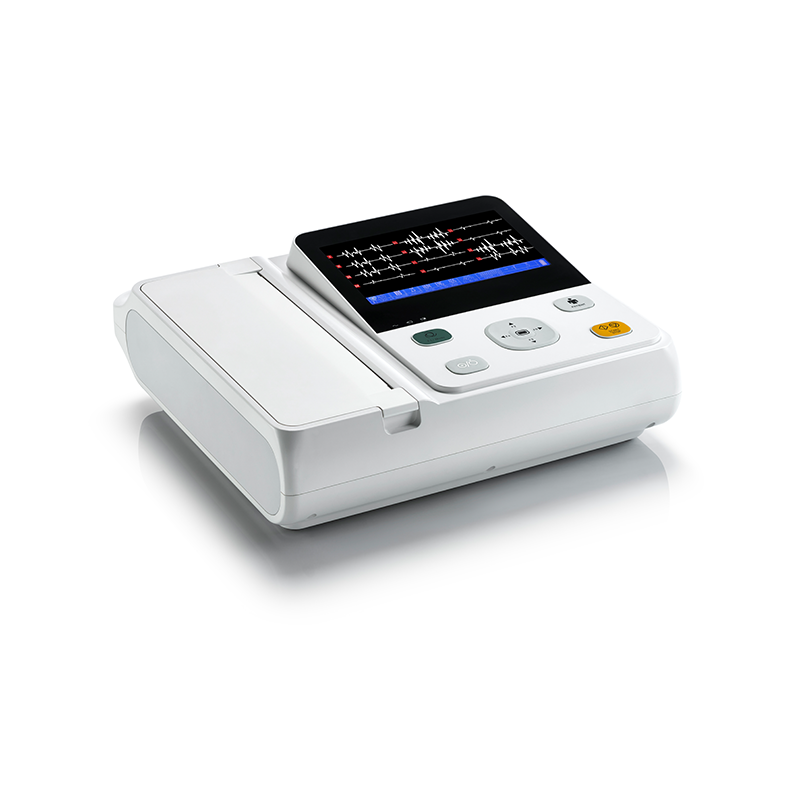

Digital ECG Machine 12 Channel,12 lead, 7inch touch screen PE-E12A

Description

Features
Digital ECG Machine (12 Channel,12
lead, 7inch touch screen.)

Portable and delicate design, easy to operate.
Accurate pulse pace identification function.
High accuracy digital filter, automatic baseline adjustment.
Working modes: Manual, Automatic, R-R, Store.
210mm, 12 channel format recording, excellent automatic interpretation.
800×480 graphic 7 inch color LCD to simultaneously display ECG information.
2024-08-09_095540

Alphanumeric keyboard to operate, very convenient to use.
250 patient cases storage ( SD card storage is optional ).
Detailed patient information record; with Freeze function.
Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery.
USB / UART ports support USB storage, laser printer printing and PC ECG software ( Optional )
Filter：AC Filter:50Hz/60Hz ;EMG Filter:25Hz/45 Hz ;Anti-Drift Filter:0.15Hz(adaptive)
Power supply:AC:110-230V(±10%),50/60Hz,40VA;DC:Built-in rechargeable Li-ion battery,14.4V.2200mAh/14.4V,4400mAh

Alphanumeric keyboard to operate, very convenient to use.
250 patient cases storage ( SD card storage is optional ).
Detailed patient information record; with Freeze function.
Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery.
USB / UART ports support USB storage, laser printer printing and PC ECG software ( Optional )
Lead acquisition:12 leads synchronously acquisition
Dimension/Weight:347mmx293mmx83mm,4.8kgs
Input Circuit:Floating;Protection circuit against defibrillator effect.
