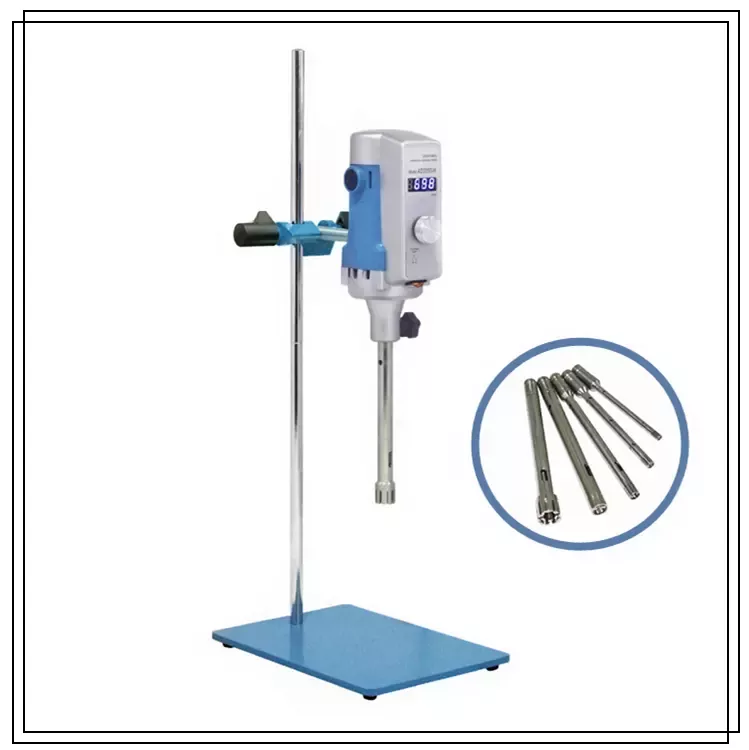

The high shear dispersing emulsifying machine is driven by a compact series micro high speed motor. It is suitable for mixing low – medium and high viscosity liquid in laboratory or pilot plant – crushing granular materials and shearing emulsifying them in liquid medium. The machine is composed of: high-speed motor, shear emulsification head, and speed controller.
Lead Time: 2-3 Weeks
• Rated voltage: AC220V
• Rated frequency: 50/60Hz
• Input power: 850W
• Output power: 500W
• Rated torque: 17.1N.cm
• Work mode: S1(Continuous)
• Operation control mode: Combined control knob
• Rotating speed adjustment range (idle running): 2000~28000rpm
• Rotating speed control type: Stepless
• Speed digital display: LED
• Timing control range: 1~1000min
• Dynamic speed detection function: Yes
• Speed memory function: Yes
• Overload protection function: Yes
• Peak torque of the sirring head: 17.0N.cm
• Stirring head material: AISI 316
• Stirring head specifications: 12G 18G 20G 24G 30G 36G
• Permissible ambinet temperature: not more than 40℃
• Permissible relative humidity: not more than 80%
• Size of the mixer (T×B×H): 215×310×720mm
• Weight: 8.7kg
Stirring head Specifications: 12G, 18G, 24G, 30G, 36G with varying mixing capacities, max viscosity tolerated, max temperature tolerated, overall length, stator diameter, bearing material, peak linear speed of the rotor, minimum and maximum height of the liquid immersed.
• High-speed motor
• Shear emulsification head
• Speed controller
• Stepless speed control
• LED digital display
• Overload protection
• AISI 316 stirring head material
